Permanent Magnet Synchronous Motor Drive Simulink Simulation (PMSM control) FOC method part 1

Title:

Description:

#PMSM #BLDC #SIMULINKCONTROL #SPEEDCONTROL #Evs #powerelectric #motordrive  #matlab #simulation #FOC

The model can be used to design the PMSM controller, selecting architecture and gains to achieve desired performance. To check the timing of IGBT turn-on and turn-off, the IGBT devices can be directly replaced by the more detailed N-Channel IGBT block.

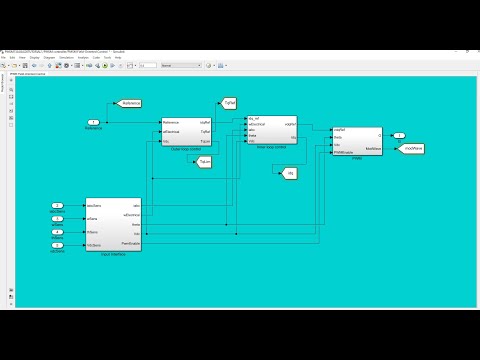

Configuration of FOC (Field Oriented Controller) using Simulink:
• Current controller consisting of two proportional-integral controllers
• Optional outer-loop velocity controller and current reference generator
• Clarke, Park, and inverse Park transforms to convert between stationary and rotating synchronous frames
• A space vector modulator algorithm to transform vα and vβ commands into pulse-width modulation signals applied to stator windings
• Protection and auxiliary functions, including startup and shutdown logic
• Optional observer to estimate rotor angular position if sensorless control is desired

You can get the simulation file by enter:
https://drive.google.com/drive/folders/1yRsJrX-qHUJ3ddhBcNMAlp-uYqZoXbBW?usp=sharing

Thanks for watching!

YouTube url:	https://www.youtube.com/watch?v=cm6a14Ge6fA
