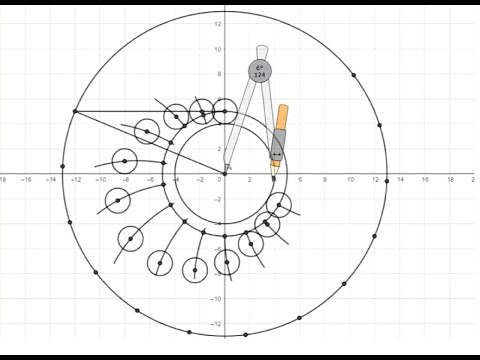

How to draw cam profile - Oscillating roller follower
Edit Subtitles
Download Subtitles
SRT
TXT
Title:
Description:
More videos on Cam profile here: https://www.youtube.com/playlist?list=PLW4Rtyezg8yk6WCwOGY1E_JoP62u-qyLI This video explains how to draw cam profile in case of an oscillating roller follower. The problem statement is as follows: Draw a cam profile to drive an oscillating roller follower with the following specifications : Follower to move outwards through an angular displacement of 20° during the first 120° of cam rotation Follower to return to its initial position during next 120° of cam rotation Follower to dwell for the rest 120° of cam rotation The distance between the pivot center & roller centre = 120 mm Distance between the pivot center & cam axis = 130 mm Minimum radius of cam = 40 mm Roller radius = 10 mm Outstroke & in stroke both stroke take place with S.H.M.
YouTube url:
https://www.youtube.com/watch?v=MJj2AacoR9I
Created:
12. 1. 2022 20:53:04
